2024 Ford F-150® Lightning in Cleveland, OH

The 2024 Ford F-150® Lightning is designed as a fully electric full-size pickup truck, engineered to support commercial, fleet, and personal utility demands through a purpose-built EV architecture. It shares foundational dimensions and frame composition with the conventional F-150® but replaces the internal combustion powertrain with a dual inboard motor system. The frame is constructed from high-strength steel, while the body panels and cargo bed are composed of military-grade aluminum alloy. The 2024 Ford F-150® Lightning comes exclusively in a four-door SuperCrew® configuration and is assembled at the Rouge Electric Vehicle Center.

The powertrain consists of two inboard fixed magnet AC motors, one mounted at the front and one at the rear, configured to supply constant all-wheel drive. These motors deliver identical torque ratings across battery types, with a measured peak torque output of 775 pound-feet.

The Standard-Range model delivers 452 horsepower, while the Extended-Range configuration raises output to 580 horsepower. Torque and horsepower values are calculated from the motors operating at peak battery output. Power delivery is immediate and linear, supporting heavy-duty towing and off-road traction.

The 2024 Ford F-150® Lightning is offered with two lithium-ion pouch cell battery systems. The Standard-Range battery contains 98 kilowatt-hours of usable energy, and the Extended-Range battery increases this to 131 kilowatt-hours. Onboard charging hardware includes an 11.3-kilowatt input for the Standard-Range and a fleet-exclusive 19.2-kilowatt input for Extended-Range applications. Output rates are listed as 10.5 kilowatts and 17.6 kilowatts, respectively.

Charging times vary depending on the method. Using a DC fast charger with 150 kilowatts of output, the 2024 Ford F-150® Lightning can charge from 15 to 80 percent in 32 minutes with the Standard-Range battery and 38 minutes with the Extended-Range. Home charging via Ford's 48-amp Connected Charge Station requires 10 hours to reach full capacity for the smaller pack and 13 hours for the larger one. A 30-amp mobile charger extends these times to 15 and 20 hours, respectively.

The 2024 Ford F-150® Lightning maintains the functional requirements of a full-size truck. Maximum payload capacity is achieved with the Standard-Range configuration, reaching up to 2,235 pounds when properly equipped. Extended-Range models offer payload limits of up to 1,913 pounds.

The base towing capacity begins at 5,000 pounds for the Standard-Range and extends to 7,700 pounds. With the Max Trailer Tow Package, Extended-Range configurations can reach a towing maximum of 10,000 pounds for Flash and Lariat® trims, and 8,500 pounds for the Platinum trim.

The integrated trailer brake controller and Tow Technology Package, which includes Pro Trailer Backup Assist and Smart Hitch, support trailer stabilization and weight monitoring.

Chassis and Suspension System

The vehicle uses an independent double-wishbone suspension in the front with coil-over shocks and stabilizer bar. The rear suspension utilizes independent semi trailing arms with coil springs and twin-tube gas-pressurized shocks. Ground clearance is 8.5 inches. The approach and departure angles measure 24.3 and 24.0 degrees, respectively. Ramp breakover angle is listed at 17.6 degrees.

Exterior measurements include a 145.5-inch wheelbase and an overall length of 232.7 inches. Width is measured at 80 inches excluding mirrors and 96 inches including them. Cab height stands at 78.3 inches. Track widths for the front and rear are nearly identical at 68.1 and 68.3 inches.

Interior Layout and Cargo Capacity

Cabin space accommodates five occupants. Front row legroom is measured at 43.9 inches and rear row legroom at 43.6 inches. Shoulder and hip room metrics are consistent with full-size truck dimensions. The 2024 Ford F-150® Lightning includes a flow-through center console with a stowable gear shifter in all trims.

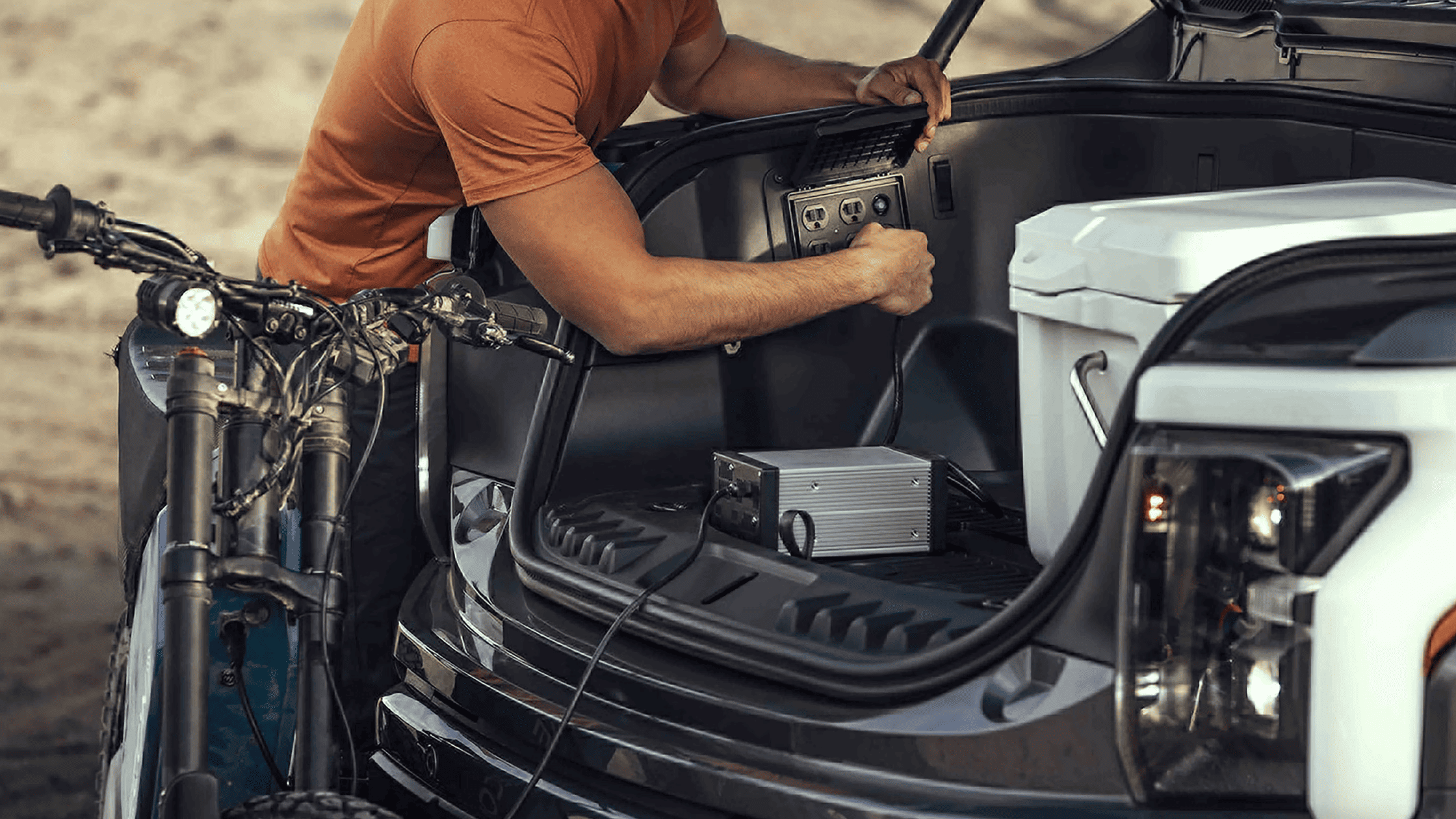

Cargo features include a 5.5-foot bed with 52.8 cubic feet of volume. The frunk, or front trunk, adds 14.1 cubic feet of enclosed, weather-sealed storage. Standard tailgate includes lift assist, while higher trims offer a power-operated version. The Tailgate Work Surface and step system improve accessibility and on-site tool management.

Technology Systems and Infotainment

Base models are equipped with SYNC® 4, which includes a 12-inch landscape touchscreen. Flash, Lariat, and Platinum trims feature SYNC® 4A, replacing the landscape display with a 15.5-inch portrait-oriented interface. Both systems support Enhanced Voice Recognition and wireless connectivity for Android Auto™ and Apple CarPlay®.

All trims include a 12-inch digital instrument cluster and Over-the-Air software updates. Navigation is provided through a built-in system with a three-year trial period. Wireless hotspots for up to ten devices are supported via FordPass® Connect. Flash and higher trims include a 360-degree camera system and Intelligent Access. Phone As A Key functionality is available on Lariat® and Platinum models.

Sound system configurations range from the standard audio package to the Bang & Olufsen® eight-speaker system found in mid-tier trims. The Platinum receives the upgraded B&O® Unleashed system with 14 speakers and an integrated subwoofer.

Driver Assistance and Safety Technologies

The 2024 Ford F-150® Lightning comes standard with Ford Co-Pilot360® 2.0. This suite includes Pre-Collision Assist with Automatic Emergency Braking, Lane-Keeping System, Blind Spot Information with Trailer Coverage, Rear View Camera, and Reverse Brake Assist. Reverse Sensing, Auto High Beam Headlamps, and Post-Collision Braking are also included. Curve Control and Roll Stability Control contribute to vehicle balance during dynamic maneuvers or braking.

Higher trims offer Ford Co-Pilot360® Assist 2.0, which adds Intelligent Adaptive Cruise Control with Stop-and-Go, Speed Sign Recognition, Intersection Assist, and Lane Centering. Ford BlueCruise, a hands-free highway driving system, is available on Flash, Lariat, and Platinum models. This feature relies on sensor input and pre-mapped Blue Zones to allow short periods of autonomous control under specific highway conditions.

Trim Variations and Feature Allocation

The 2024 Ford F-150® Lightning is structured across five trims. Each trim targets a separate use case.

Pro and XLT serve commercial or work-duty applications. These models include the Standard-Range battery, basic cloth or vinyl seating, manual adjustment, SYNC® 4 infotainment, and base-level towing functionality.

The Flash trim introduces the Extended-Range battery as standard, upgrades to a 10-way power driver seat, and includes the SYNC® 4A infotainment suite with the 15.5-inch screen. This trim also includes advanced safety systems and the 360-degree camera.

Lariat® builds on Flash with ActiveX-trimmed heated and ventilated front seating, Intelligent Access, and additional lighting features.

Platinum serves as the highest specification level, adding premium materials, full Pro Power Onboard capability, and the most advanced technology suite available. It is the only trim with access to the Platinum Black Package, which includes a matte black exterior wrap, specialized decals, 22-inch wheels, and unique trim badging.

Schedule a Test Ride Today

The 2024 Ford F-150® Lightning presents a fully electric configuration that retains the structural utility and capability expected from a full-size pickup. The design leverages dual electric motors, high-capacity batteries, independent suspension, and intelligent onboard systems to provide consistent power delivery, substantial towing support, and flexible cargo handling. Test the functionality of this truck in a live driving environment. Evaluate the precision of the dual-motor drivetrain, the consistency of electric torque, and the usability of worksite power systems. Visit Nick Mayer Ford West Avon Lake in Cleveland, OH, to schedule a test ride and assess how the vehicle performs under realistic conditions.
